(1)、额定输入电流Lin: 0–10A
(2)、二次输出电压Vo: 0–10V
(3)、线性范围：10%～2000%（甚至更多）额定电流
(4)、非线性度:比差＜±0.1%;角差＜±10分
(5)、频率特性: 45-800HZ
(6)、输出负载阻抗:＞100KΩ
(7)、功耗限值:0.5VA
(9)、绝缘电阻: 500MΩ @500VdC
(10)、工频耐压: 3kV 2mA 1min
(11)、输出负载阻抗:＞100KΩ
(12)、结构：环氧树脂灌封
(13)、外壳：PBT耐高温阻燃或ABS阻燃材料
(14)、端子：输入端为导线，输出端为针脚
(15)、重量：50-100g

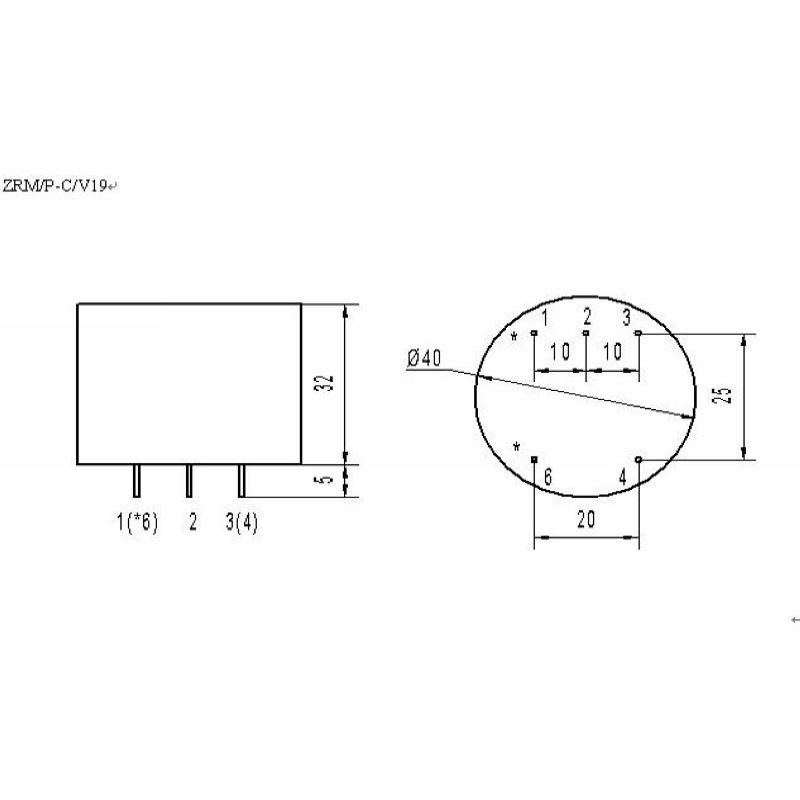

型号含义：ZRP-C/V XX
ZR -------- 中瑞电子科技有限公司
P -------- 产品品种代号（P:保护用电流电压变换器）
C/V-------- 分类代号（ C:电流变换器 V:电压变换器）
XX -------- 产品外壳代码
|
规格 |
输入电流额定值(A) |
输出 电压 额定 值(V) |
最大过载电流(A) |
最大过载时输出电压（V） |
非线性度 |
功率消耗(VA) |
工频耐压 (V) |
|
|
比差 (±%) |
角差 (±分) |
|||||||
|
|
1 |
0.1765 |
20 |
3.53 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
1 |
0.3535 |
20 |
7.07 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.4 |
50 |
4 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.1765 |
100 |
3.53 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.20 |
100 |
4 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.25 |
100 |
5 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.335 |
100 |
6.7 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.3535 |
100 |
7.07 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.5 |
100 |
10 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.1177 |
150 |
3.53 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.133 |
150 |
4 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.083 |
200 |
3.53 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.176 |
200 |
7.07 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.133 |
300 |
8 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
5 |
0.176 |
300 |
10.6 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
100 |
3.53 |
150 |
5.3 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
200 |
5 |
300 |
7.5 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
300 |
6 |
400 |
8 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
600 |
10 |
800 |
13.3 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
|
1000 |
10 |
1500 |
15 |
＜0.1 |
≤10 |
＜0.1 |
＞3000 |
|
规格 |
输入电压额定值(V) |
输出电压额定值(V) |
输入电压过载倍数 |
非线性度 |
空载电流(mA) |
工频 耐压(V) |
|
|
比差(±%) |
角差(±%) |
||||||
|
57.7V/3.53V |
57.7 |
3.53 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/2.88V |
100 |
2.88 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/3.53V |
100 |
3.53 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/4V |
100 |
4 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/5V |
100 |
5 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/6V |
100 |
6 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/6.7V |
100 |
6.7 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
100V/7.07V |
100 |
7.07 |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
110V/3.53V |
110 |
3.53. |
1.5 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
120V/3.53V |
120 |
3.53 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
120V/7.07V |
120 |
7.07 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
150V/4V |
150 |
4 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
190V/3.53V |
190 |
3.53 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
200V/3.53V |
200 |
3.5. |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
200V/4V |
200 |
4 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
200V/6.7V |
200 |
6.7 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
300V/3.53V |
300 |
3.53 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
300V/4V |
300 |
4 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
300V/5V |
300 |
5 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
|
450V/7.07V |
450 |
7.07 |
1.2 |
＜0.1 |
≤10 |
＜0.5 |
＞3000 |
