1. Voltage-output mode for Protecting Current Transformers （ZRP-CXX Series）
a. Main Features:
(1)、Can effectively inhibit the interference of group-signal from electrical fast transient pulse
(2)、Reliable insulation between primary winding and vice edge winding, winding and shielding
(3)、With strong overload capability，can bear 10-20 times instantaneous impact from rated current
and still be unsaturated，with no significant distortion of waveform
(4)、Voltage and current can transfer to its place at a time，
then insulate and convert the measured current into voltage directly
(5)、With excellent consistency
b. Electrical Parameters:
(1)、Rated input current (Lin)：0-10A
(2)、Secondary output voltage：0~10V
(3)、Range of linearity：10%～2000% （or more）rated current
(4)、Non-linearity:  Ratio difference ＜±0.1%;   Angle difference ＜±5′
(5)、Frequency characteristic: 45~800HZ
(6)、Limitation of power consumption: 0.5VA
(7)、Insulation resistance: 500MΩ @500VdC
(8)、Power frequency withstands voltage: 3kV 2mA 1min
(9)、Operating temperature: -40℃~+85℃
(10)、Output load resistance:＞100KΩ
(11)、Structure：Epoxy encapsulating
(12)、Outer casing：PBT heat-resistant material or ABS flame-retardant material
(13)、Terminal：input→wire, output→pin
(14)、Weight：50g~100g

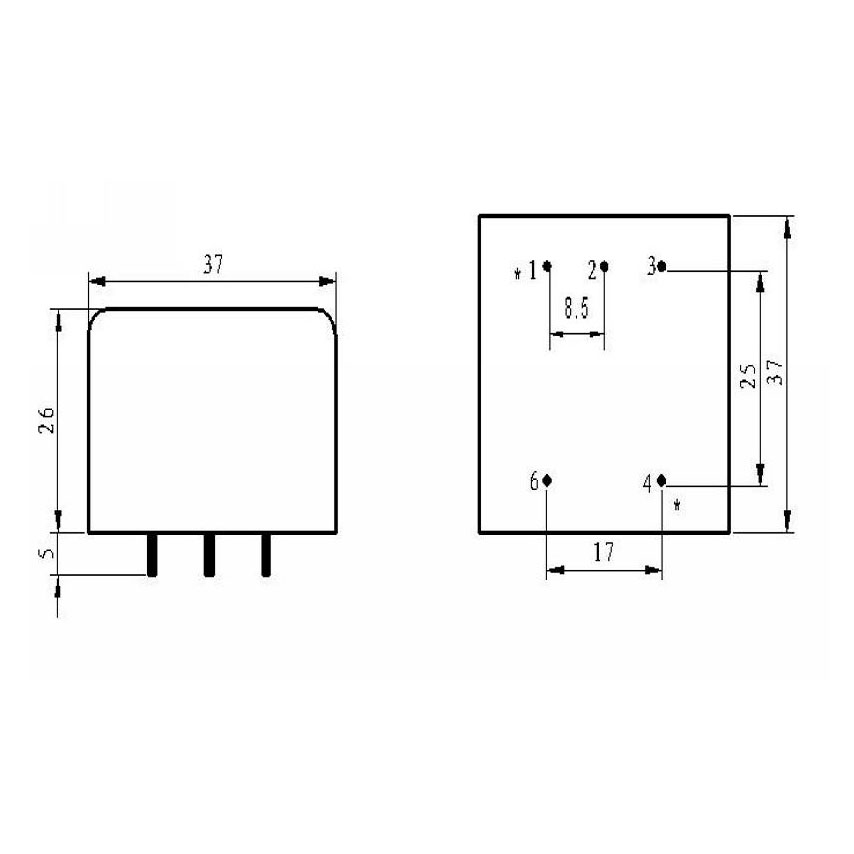

2. Voltage-output mode for Protecting Voltage Transformers （ZRP-VXX Series）
a. Main Features:
(1)、There’s a settled proportional relation between primary voltage and secondary voltage,
 so that any changes of electric potential in primary load will be
accurately reacted in the instrument or other devices that in parallel with secondary terminal
(2)、Reliable insulation between primary winding and vice edge winding, winding and shielding
(3)、With excellent linearity, wide working range, perfect consistency

b. Electrical Parameters:
(1)、Rated input voltage: 0–500V
(2)、Secondary output voltage：0~10V
(3)、Range of linearity：5%～120% （or more）rated current
(4)、Non-linearity:  Ratio difference ＜±0.1%;   Angle difference ＜±5′
(5)、Frequency characteristic: 45~800HZ
(6)、Limitation of power consumption: 0.5VA
(7)、Operating temperature: -40℃~+85℃
(8)、Insulation resistance: 500MΩ @500VdC
(9)、Power frequency withstands voltage: 3kV 2mA 1min
(10)、Output load resistance:＞50KΩ
(11)、Structure：Epoxy encapsulating
(12)、Outer casing：PBT heat-resistant material or ABS flame-retardant material
（13）、Terminal：pins
（14）、Weight：60-150g



Type Implication:   ZR-P-C/V-XX



ZR  --------- Zhongrui Electrical Technical Co., Ltd

P     --------- Product’s variety code（P、Protecting CT/VT）

C/V --------- Classification code（ C、CT   V、VT）

XX  --------- Product’s outer casing code





Protecting CT-Technical parameters of commonly used product specifications

Specifications "" />	Rated input current (A)	Rated output voltage (V)	Max current (A)	Output voltage when Max overload（V）	nonlinearity		Power consumption (VA)	Power frequency withstand voltage (V)
					(±%) Ratio difference	(±%) Angle difference
xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />20A/3.53V	1	0.1765	20	3.53	＜0.1	≤10	＜0.1	＞3000
20A/7.07V	1	0.3535	20	7.07	＜0.1	≤10	＜0.1	＞3000
50A/4V	5	0.4	50	4	＜0.1	≤10	＜0.1	＞3000
100A/3.53V	5	0.1765	100	3.53	＜0.1	≤10	＜0.1	＞3000
100A/4V	5	0.20	100	4	＜0.1	≤10	＜0.1	＞3000
100A/5V	5	0.25	100	5	＜0.1	≤10	＜0.1	＞3000
100A/6.7V	5	0.335	100	6.7	＜0.1	≤10	＜0.1	＞3000
100A/7.07V	5	0.3535	100	7.07	＜0.1	≤10	＜0.1	＞3000
100A/10V	5	0.5	100	10	＜0.1	≤10	＜0.1	＞3000
150A/3.53V	5	0.1177	150	3.53	＜0.1	≤10	＜0.1	＞3000
150A/4V	5	0.133	150	4	＜0.1	≤10	＜0.1	＞3000
200A/3.53V	5	0.083	200	3.53	＜0.1	≤10	＜0.1	＞3000
200A/7.07V	5	0.176	200	7.07	＜0.1	≤10	＜0.1	＞3000
300A/8V	5	0.133	300	8	＜0.1	≤10	＜0.1	＞3000
300A/10.6V	5	0.176	300	10.6	＜0.1	≤10	＜0.1	＞3000
100A/3.53V	100	3.53	150	5.3	＜0.1	≤10	＜0.1	＞3000
200A/5V	200	5	300	7.5	＜0.1	≤10	＜0.1	＞3000
300A/6V	300	6	400	8	＜0.1	≤10	＜0.1	＞3000
600A/10V	600	10	800	13.3	＜0.1	≤10	＜0.1	＞3000
1000A/10V	1000	10	1500	15	＜0.1	≤10	＜0.1	＞3000

Note: The above specifications are stock products’ specifications. We can also design for customers according to their requirements.





Protecting VT-Technical parameters of commonly used product specifications

Specifications	Rated input voltage (V)	Rated output voltage (V)	Input voltage overload multiple	nonlinearity		No-load current	Power frequency withstand voltage (V)
				(±%) Ratio difference	(±%) Angle difference
57.7V/3.53V	57.7	3.53	1.2	＜0.1	≤10	＜0.5	＞3000
100V/2.88V	100	2.88	1.5	＜0.1	≤10	＜0.5	＞3000
100V/3.53V	100	3.53	1.5	＜0.1	≤10	＜0.5	＞3000
100V/4V	100	4	1.5	＜0.1	≤10	＜0.5	＞3000
100V/5V	100	5	1.5	＜0.1	≤10	＜0.5	＞3000
100V/6V	100	6	1.5	＜0.1	≤10	＜0.5	＞3000
100V/6.7V	100	6.7	1.5	＜0.1	≤10	＜0.5	＞3000
100V/7.07V	100	7.07	1.5	＜0.1	≤10	＜0.5	＞3000
110V/3.53V	110	3.53.	1.5	＜0.1	≤10	＜0.5	＞3000
120V/3.53V	120	3.53	1.2	＜0.1	≤10	＜0.5	＞3000
120V/7.07V	120	7.07	1.2	＜0.1	≤10	＜0.5	＞3000
150V/4V	150	4	1.2	＜0.1	≤10	＜0.5	＞3000
190V/3.53V	190	3.53	1.2	＜0.1	≤10	＜0.5	＞3000
200V/3.53V	200	3.5.	1.2	＜0.1	≤10	＜0.5	＞3000
200V/4V	200	4	1.2	＜0.1	≤10	＜0.5	＞3000
200V/6.7V	200	6.7	1.2	＜0.1	≤10	＜0.5	＞3000
300V/3.53V	300	3.53	1.2	＜0.1	≤10	＜0.5	＞3000
300V/4V	300	4	1.2	＜0.1	≤10	＜0.5	＞3000
300V/5V	300	5	1.2	＜0.1	≤10	＜0.5	＞3000
450V/7.07V	450	7.07	1.2	＜0.1	≤10	＜0.5	＞3000
