ZR-805-Magnetic Latching Relays

Ⅰ、Applications 1、Smart meters; 2、Concentrated meter reading system; 3、Street lamp control system; 4、Compound switch; 5、Automatic control device/assembly.
  • 产品详情/PRODUCT DETAILS
Ⅰ、Applications
1、Smart meters;
2、Concentrated meter reading system;
3、Street lamp control system;
4、Compound switch;
5、Automatic control device/assembly.


Ⅱ、Operating system
Magnetic Latching Relay is a kink of high-power relay, of which the contact
condition is maintained by the magnetic force from permanent magnet. When the load
need to be open or closed, positive and negative dc impulse voltage will drive
the coil,so that relay can complete the state transition between opening and closing
instantly. And then, the coil doesn’t need electricity any more, only by the magnetic
force of permanent magnet, its condition can be maintained.

Ⅲ、Product code :   ZR XXX   -XXA  XXV

ZR XXX  ----- Product Type
-XXA    ----- Rated Current(40A~120A)
XXV     ----- Coil Voltage (6V~36V)



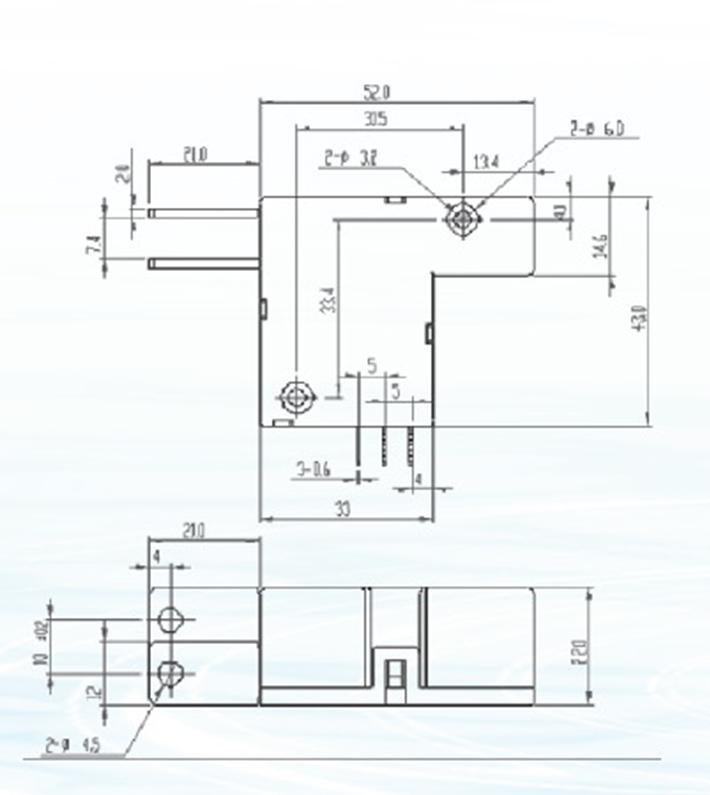

ZR-805 Technical Parameters "" />

Contaca ResistancemΩ)

1.2mΩ

(xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />1A 6VDC Beta)

Rated Coil Voltage

9VDC~48VDC

Contact Voltage Drop (mV)

120mV

Coil Power ConsumptionW/0.1s

Single

1.2~2W

Double

2.4~4W

Contact LoadResistance

100A/120A  250VAC

Initial Operating VoltageDVC

75%

Max Curret

120%

Max Coil VoltageV

200%

Electrical Life (ops)

1×104

Max Switching Voltage

250VAC

Mechanical Life(ops)

1×106

Insulation Resistance

1000MΩ(500VDC)

Max Action Frequency

1200 ops/h

Operating Time

Close

20ms

Short-rush Current

30multiple/10ms

Open

20ms

Dielectric Strength

Coil-Contact

4000V

Pluse Time(s)

0.05~0.5s

Coil-Coil

1500V

Enclosure Type

Sealed
